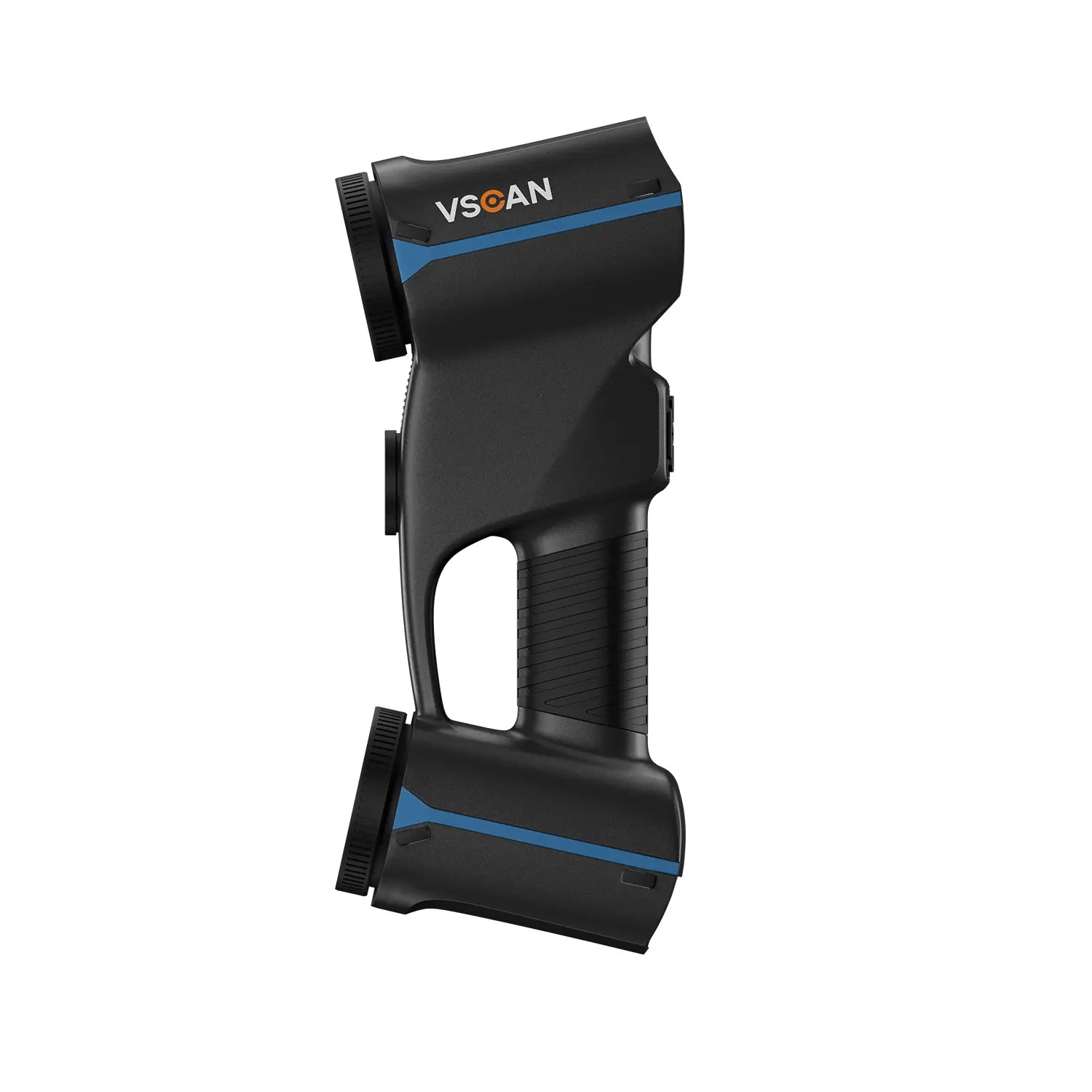

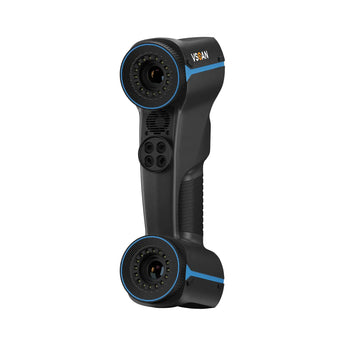

VoxMeta VScan M11 Industrial 3D Scanner | 0.015mm Accuracy
Metrology-Grade Accuracy: Up to 0.015mm for precise capture of fine details.
Consistent Volumetric Precision: Up to 0.015mm + 0.015mm/m with VMetric 20M for large objects.
High-Speed Scanning: 60fps with up to 1,300,000 points/s for smooth, efficient data capture.
Industrial Stability: AI-powered compensation with industrial-grade cameras for reliable long-term performance.
Multi-Line Laser Modes (22+7+1): Optimized line configurations for wide areas, complex geometry, and deep features.
22+7+1 Multi-Line Laser Scanning
Wide coverage, fine details, and deep-hole access in one device
Fast Scan
22 Cross Laser Lines
Crossed laser lines enhance coverage and stability for faster, more reliable scanning.
Detail Capture
7 Parallel Laser Lines
Parallel laser lines can accurately capture every subtle detail, sharp edge, and complex surface, achieving ultimate precision.
Fine Scan
1 Single Laser Lines
Ideal for deep holes & grooves — captures full data in dead corners, no scanning blind spots.

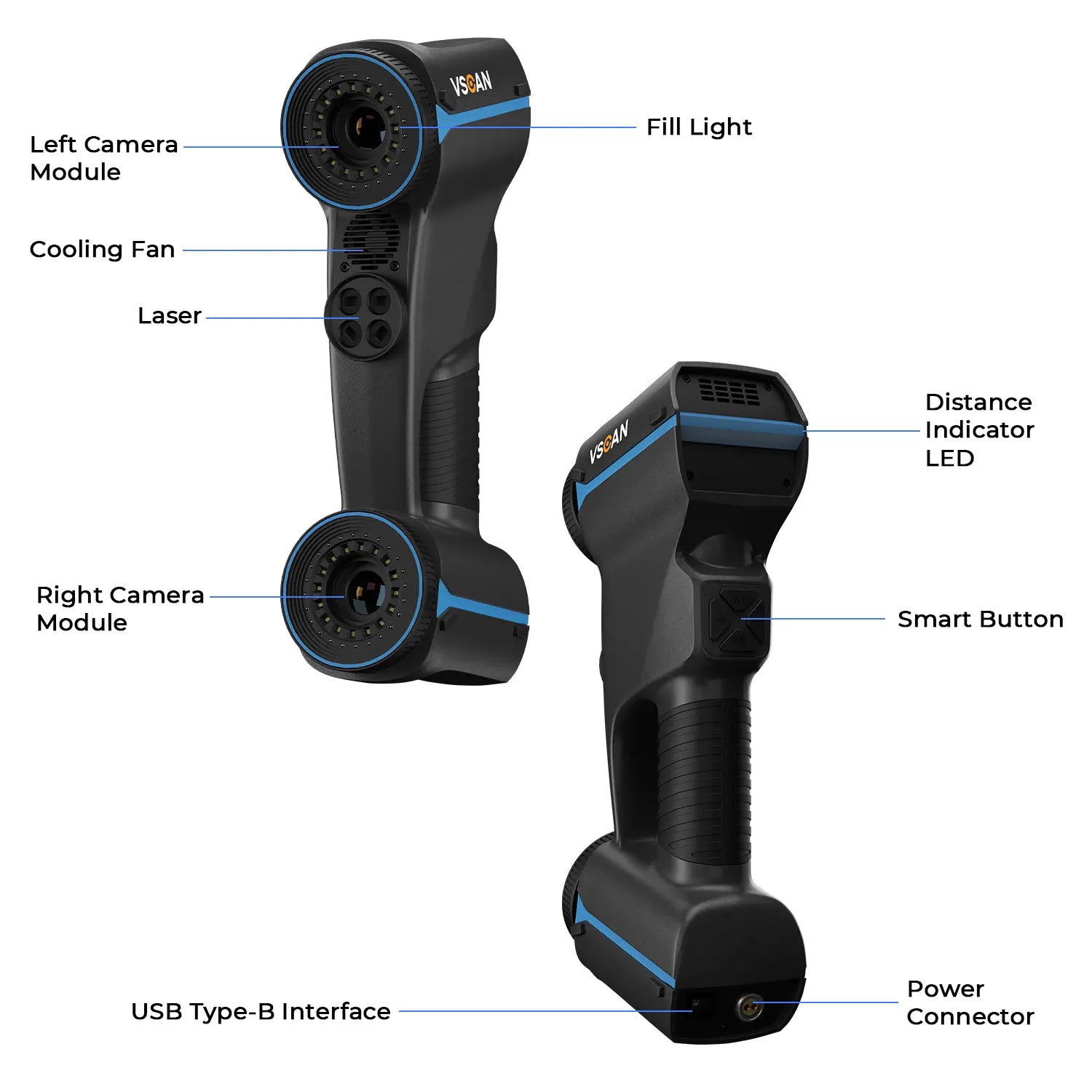

High-Performance Design, Stable & Precise Scans
Optimized structural framework guarantees precision and stability across all scanning modes
How VScan M11 Helps You
Reverse Engineering
Quickly captures complete 3D data for model reconstruction and design optimization.
Precision Measurement
Captures precise dimensions and geometry with high accuracy, faithfully reproducing fine details and complex structures.
Quality Inspection
Compares scanned data with CAD models to quickly identify dimensional deviations and deformations.
3D Printing
Scanned models can be directly used for 3D printing, enabling fast replication and customization.
More Accurate Scans, Down to the Finest Details
Advanced optical system and intelligent algorithms capture sharper geometry and finer surface details — even on complex structures.
software
Professional Software Interface. Full Control at a Glance
Specifications
| Accuracy | 0.015mm |
| Volumetric Accuracy | Standard: 0.015mm + 0.030mm/m With VMetric 20M Global Photogrammetry System: 0.015mm + 0.015mm/m |
| Measurement rate | 1,300,000 points/s |
| Scanning Speed | Up to 60fps |
| Device Type | Industrial cameras and lenses |
| Light Source | 22+7+1 |
| Laser Safety | 2M (Eye Safe) |
| Depth of Field | 350mm |
| Single Capture Area at Nearest Distance | 100*130mm@150mm |
| Single Capture Area at Furthest Distance | 520*450mm@500mm |
| Data Interface | USB3.0 |
| RAM | ≥ 64GB |
| GPU | NVIDIA GeForce RTX 4060 (8GB VRAM or higher) |
| Operating System | Windows 10/Windows 11 |
| Size | 310*135*75mm |
| Device Weight | ≤1kg |
| Operating Temperature | 5℃～40℃ |
| Operating Humidity | 20%～80%RH |
